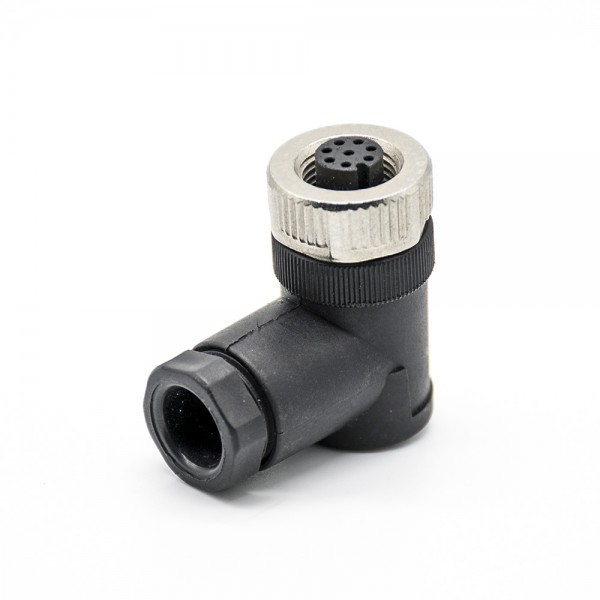

M12 A Code Assembly 8 Pin Female Angel Unshield PG9 Connector

Thread locking mechanism, shockproof locking design, 12mm threaded joint Quick plug and pull, simple and convenient installation ISO certified manufacturer, product quality meets ROHS, UL, REACH standards Factory direct sales and wholesale prices, free sample testing, products can be customized according to material and performance requirements

Products Details

General information
Standard: IEC 61076-2-101
Ambient temperature: -25℃ ~ +90℃
Connector insert: TPU
Connector contacts: Brass with gold plated
Connector body: Zinc alloy with nickel plated
Coupling nut/screw: Brass with nickel plated
Seal/O-ring: FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Shielding: Available
Cable gland OD: A: 4~6mm, B: 6~8mm
IP rating: IP67/IP68 in locked condition
Electrical data & Mechanical data
Contacts Available coding Contacts termination Rated current Voltage Wire gauge/size Cable type & length
A/C D/C AWG mm²
03 pins A/B Screw joint 4A 250V 250V 22 0.34 Custom version available
04 pins A/B/D Screw joint 4A 250V 250V 22 0.34
05 pins A/B Screw joint 4A 60V 60V 22 0.34
08 pins A Screw joint 2A 30V 30V 24 0.25
M12 Male,Assembly,Straight,Shielded M12 Male,Assembly,Straight,Shielded M12 Male,Assembly,Straight,Shielded M12 Male,Assembly,Straight,Shielded M12 Male,Assembly,Straight,Shielded M12 Male,Assembly,Straight,Shielded M12 Male,Assembly,Straight,Shielded M12 Male,Assembly,Straight,Shielded M12 Male,Assembly,Straight,Shielded
